Description:
Specifications:
KV: 380rpm/vNon-load Current: 2.7A
Working Current: ≤90A
Shaft Diameter: 8mm
N.W.: 563g
G.W.: 674g
Parameters:
| KV | Non-load Current |
Max Working Current |
Loaded Propeller |
Input Voltage |
Working Current |
Pull | Output Power | Rated Current | Weight | Shaft (mm) |
Internal Resistance |
| 380 | 2.7A | 90A | 1540 | 21V | 16A | 2500g | 336w | 75A | 563g | 8 | 0.0129Ω |
| 22.2V | 18A | 2800g | 399.6w | ||||||||
| 25.2V | 21.5A | 3600g | 541.8w | ||||||||
| 25.9V | 23A | 3700g | 595.7w | ||||||||
| 29.4V | 29A | 4200g | 852.6w | ||||||||
| 33.6V | 35.5A | 5500g | 1192.8w | ||||||||
| 37.8V | 44.5A | 7000g | 1682.1w | ||||||||
| 42V | 55.5A | 8000g | 2331w | ||||||||
| 45V | 64A | 8800g | 2880w |

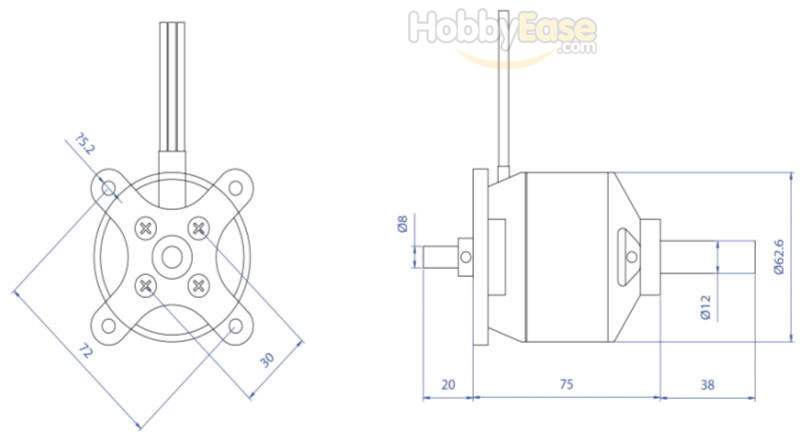

Size Reference:
Unit: mm
